Manual Trolley 3 Ton Single Phase Electric Chain Hoist Single Speed M5 Working Grade

Product Categories
Jaili Machinery Co., Ltd.
Contact Now

Manual Trolley 3 Ton Single Phase Electric Chain Hoist Single Speed M5 Working Grade

Brand Name : TXK

Model Number : SSDHL03-02S

Certification : CE/SGS/GS

Place of Origin : Jiangsu

MOQ : 1 sets

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000sets per month

Delivery Time : 7 working days

Packaging Details : in wooden cases

Capacity : 3ton

Power supply : 1P, 220V~690V

Control Voltage : 24V/36V/48V

Motor Power : 3

Standard lifting height : 3m

Speed : Single or double

Contact Now

Manual trolley type inverter control single speed electric chain hoist
We Jiangsu Jiali Machinery , covers a total area of 100000 sq.m, located in Jiangsu China. We are a professional manufacturer of 'TXK' brand electric chain hoist, wire rope hoist, manual hoist, cranes and crane components, also a trustworthy supplier of related lifting equipment. We obtained CE, SGS, ISO certificates for our products.

Specification

Electric Chain Hoist With Electric Trolley
Type0.5-0101-0102-0103-02
Capacity(t)0.5123
Standard Lifting Height(m)3333
Lifting Speed(m/min)6.86.66.64.4
Lifting MotorPower(kw)0.751.533
Rotation Speed(r/min)1440144014401440
Phases3333
Voltage(v)200-660200-660200-660200-660
Frequency(Hz)50/6050/6050/6050/60
Operating MotorPower(kw)0.40.40.40.75
Rotation Speed(r/min)1440144014401440
Operating Speed(m/min)11/2111/2111/2111/21
Phases11111
Volatge(v)200-660200-660200-660200-660
Frequency(Hz)50/6050/6050/6050/60
Chain Turns1111
Chain SpecificationØ6.3Ø7.1Ø10.0Ø10.0
Test Load(t)0.6251.252.53.75
Weight(kg)4761115122
I-Beam(mm)58-15358-15382-178100-178
Weight Added with 1m Higher(kg)0.811.12.32.8

Main Features of Electric chain hoist

*Sheel:
1. The TXK electric chain hoist is made of light aluminum alloy shell, light but hard.
2. With cooling fin, easy and quick Bring the Heat out.
* Break System:
1. Side Magnetic Braking Device, ensure lock the hoist.
2. Mechanical braker, Dual braking system, much safer.
* Limit Switch:
With up & down Limit Switch,to prohibit the chains from exceeding for safety.
* Chain:
Originally imported from Japan and Germany. Anti-Rust and Anti-corrosion.
* Electromagnetic contactor:
1. With Schneider Electric (TESSIC), can be used safely under high frequency.
2. Can be installed Variable-Vrequency Drive (VFD Electric) Can be suitable for Single Phase Power supply.
* Inverse phase sequence protecting device:
It is sepcial electrical installation which controls the circuit not to work in case of wiring error in the power supply.
* Gear:
The gear made of alloy steel, Through the heat treatment.
* Level of Protection Grade(IP Grade):
1. Hoist IP Grade: IP54
2. Push Buttom IP Grade: IP65
* Power supply:
All kinds of voltage can be custom-made. 220V-660V, 50HZ/60HZ, 1P/3P.
* Working Grade: M5

Packaging & Shipping

1. Packing : Plywood Cases (Fumigation-free packing)
2. Shipping way: By sea or By Air or Express

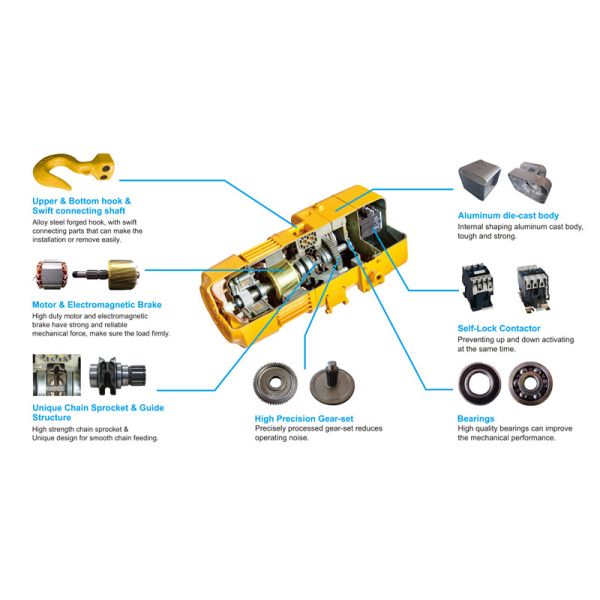

    Structure and parts name

    Manual Trolley 3 Ton Single Phase Electric Chain Hoist Single Speed M5 Working Grade
